NEW 25PK Covidien Bis Quatro (4 Electrode) Sensor 186-0106

NEW 25PK Covidien Bis Quatro (4 Electrode) Sensor 186-0106

SKU

SKU:186-0106 -N25PK

Regular price $449.99 USD
Regular price $639.99 USD Sale price $449.99 USD
Sale Sold out
Shipping calculated at checkout.

3 in stock.

Expiration Date: 2024-01-19

Included in this Sale:

  • NEW 25PK Covidien Bis Quatro (4 Electrode) Sensor Ref PN 186-0106
  • FREE Ground Shipping to The Lower 48 US States

Product Description:

Gain Insight into Brain Response with BIS Technology.

BIS technology offers clinicians added security for providing specialized care and comfort for their patients, including those who may be more sensitive to the hemodynamic eff

Gain Insight into Brain Response with BIS Technology.

BIS technology offers clinicians added security for providing specialized care and comfort for their patients, including those who may be more sensitive to the hemodynamic effects of anesthesia. BIS monitoring provides valuable information about the patient status to help clinicians address each patients unique anesthetic requirements.

This technology may be particularly valuable for:

  • Patients with complex conditions whose status may suddenly or frequently change.
  • Patients with cardiovascular conditions.
  • Obese patients.
  • Trauma patients or others requiring reduced levels of anesthesia.
  • Designed to interface with any BIS Ready Patient Monitoring Systems
  • Made with Zipprep™ Technology
  • Sensors for virtually every scenario
  • Collects low-frequency EEG data
  • Interprets and translates data into BIS index
  • Comes in various sensor types and quantities

Features:

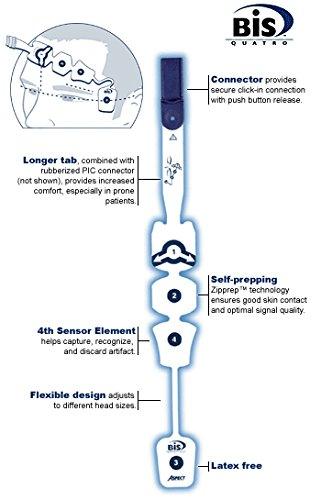

  • Connector provides secure click-in connection with push button release.
  • Self-prepping Zipprep technology ensures good skin contact and optimal signal quality.
  • Longer tab, combined with rubberized PIC connector, provides increased comfort, especially in prone patients.
  • Fourth sensor element helps capture, recognize and discard artifact.
  • Flexible design adjusts to different head sizes.
  • Latex-free.
  • Peel-and-stick simplicity.
  • Zipprep technology.
  • BIS sensors collect electroencephalograph (EEG) data.
  • BIS technology enables simple EEG data collection via a noninvasive sensor applied to the patients forehead.

Product Specifications:

1. Parameter Description

    • Sensor dimensions 11 in. x 1.1 in. (approx.).
    • Weight 3.7 g (approx.).
    • Weight (packaged) 16.8 g (approx.).
    • Packaging 25 individually packaged sensors per box.
    • Shelf life One and a half years from date of manufacture.

2. Sensor Element Material Description

    • Connector (paddle) Polycarbonate plastic (incidental patient contact).
    • Tab stiffener Polycarbonate sheet (no patient contact).
    • One side coated with adhesive.
    • Module Copper/brass/Kapton* (no patient contact).
    • Flexible circuit Polyester screen-printed with cured Ag/AgCl and dielectric inks (incidental patient contact).
    • Electrode gel Potassium chloride (KCl) aqueous gel.
    • Electrode tines disk Green nylon plastic.
    • Electrode sponge disk Polyurethane/polyester foam.
    • Electrode tines retaining disk 1/32 in. white polyethylene foam (no patient contact).
    • Both sides coated with medical-grade adhesive.
    • Basepad 1/16 in. white polyethylene foam.
    • Both sides coated with medical-grade adhesive.
    • Liner card Silicone-coated high-impact polystyrene (no patient contact).
    • Packaging Paper/aluminum foil/polyethylene (no patient contact).
