Philips Trilogy Evo Ventilator Certified Patient Ready With Warranty - Refurbished

Philips Trilogy Evo Ventilator Certified Patient Ready With Warranty - Refurbished

SKU: SKU: DS2110X11B -R
Regular price $4,400.00 USD
Regular price $5,000.00 USD Sale price $4,400.00 USD
Sale Sold out
Shipping calculated at checkout.

9 in stock

Included in this Sale:

  • REFURBISHED Philips Respironics Trilogy Evo Portable Life Support Ventilator MPN DS2110X11B UPC 00606959051942
  • Philips Respironics Detachable Battery Ref PN 1127889

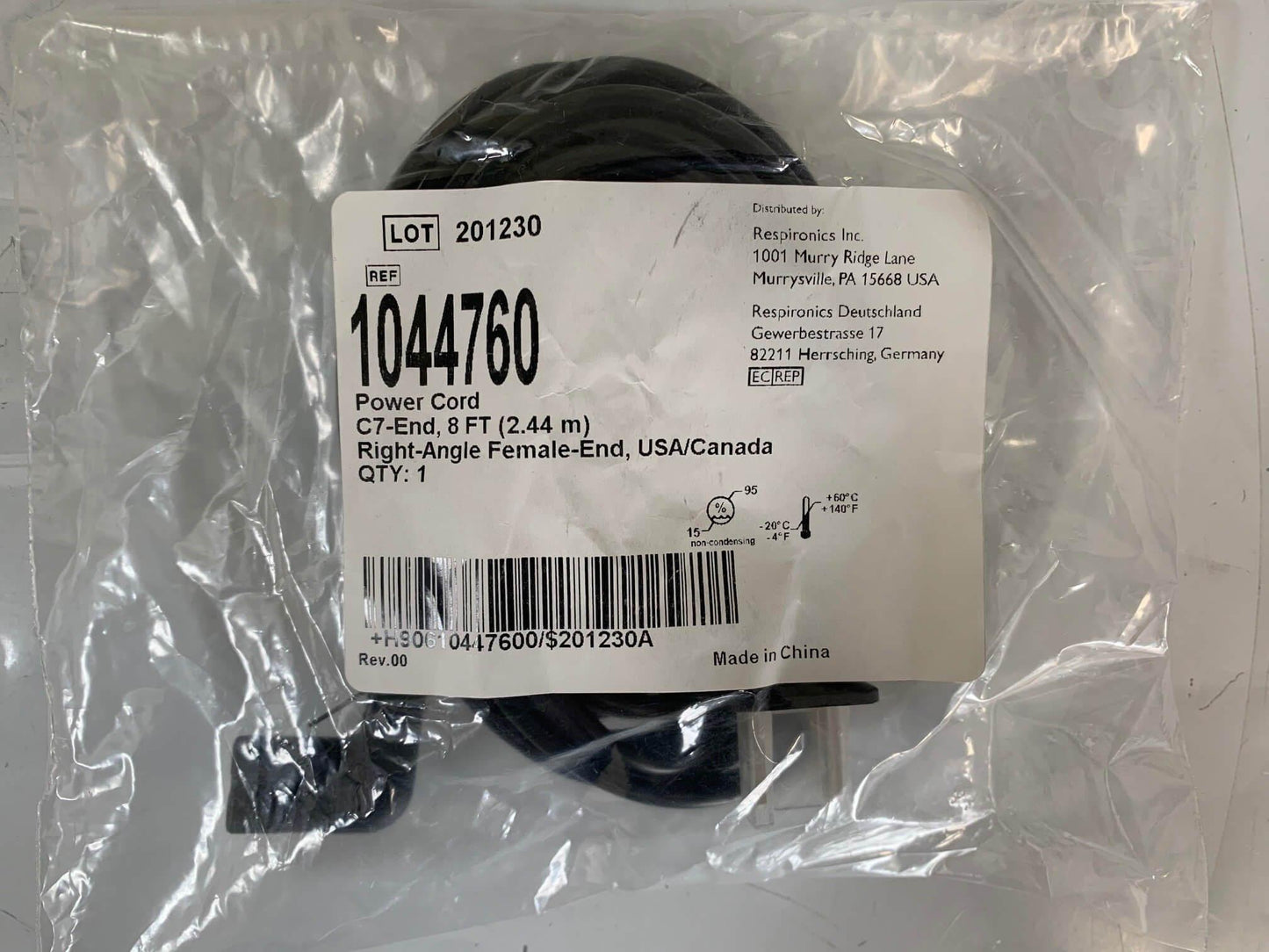

  • Philips Respironics Power Cord Ref PN 1044760
  • 12 Month Warranty
  • FREE Ground Shipping to The Lower 48 US States

Manufacturer Website Information: Here

Trilogy Evo Related Products for sale: Here

Specifications:

Ventilation modes

A/C-VC
  • Assist control (volume control)
CPAP
  • Continuous positive airway pressure
PSV
  • Pressure support ventilation
S/T
  • Spontaneous/timed ventilation
SIMV-PC
  • Synchronized intermittent mandatory ventilation (pressure control)
SIMV-VC
  • Synchronized intermittent mandatory ventilation (volume control)
MPV-PC
  • Mouthpiece ventilation (pressure control)
MPV-VC
  • Mouthpiece ventilation (volume control)



Physical

Weight
  • 5.2 kg
Size
  • 16.5 cm D x 28.6 cm W x 24.5 cm H 6.48” D x 11.25” W x 9.65” H
Screen dimensions
  • 8”, 20.32 cm



Oxygen

Low flow
  • 0 to 30 l/min; maximum 10 psi
High pressure
  • 280 to 600 kPa (41 to 87 psi)



Measured and displayed patient parameters

Tidal volume (Vti or Vte)
  • 0 to 2000 ml
Minute ventilation (MinVent)
  • 0 to 30 l/min
Leak
  • 0 to 200 l/min
Respiratory rate (RR)
  • 0 to 90 BPM
Peak inspiratory flow (PIF)
  • 0 to 200 l/min
Peak inspiratory pressure (PIP)
  • 0 to 90 cmH2O
Mean airway pressure
  • 0 to 90 cmH2O
Percentage spontaneous triggered breaths (%Spont Trig)
  • 0 to 100%
I:E ratio
  • 9.9:1 to 1:9.9
Dynamic compliance (Dyn C)
  • 1 to 100 ml/cmH2O
Dynamic resistance (Dyn R)
  • 5 to 200 cmH2O/l/sec
Dynamic plateau pressure (Dyn Pplat)
  • 0 to 90 cmH2O
Auto-PEEP
  • 0 to 20 cmH2O
FiO2 with FiO2 sensor
  • 21% to 100%
SpO2 with pulse oximeter accessory
  • 0 to 100%
Pulse rate with pulse oximeter accessory
  • 18 to 321 beats per minute
EtCO2 with CO2 accessory
  • 0 to 150 mmHg
Electrical
AC input voltage
  • 100V - 240V, 50/60 Hz, 1.7 - 0.6A
DC input voltage
  • 12/24V 6.5A
Internal and detachable Li-on batteries
  • 15 hours’ nominal total run time per method in IEC 80601-2-72 (7.5 hours each battery)
Charge time for detachable and internal battery
  • from 0% to 80%: 2.5 hours; from 0% to 100%: 3.5 hours
Alarms
Inspiratory Pressure
  • PEEP+1 to 89 cmH2O
Tidal Volume
  • OFF, 10 - 2000 ml
Minute Ventilation
  • OFF, 0.2 - 30 L/min
Respiratory Rate
  • OFF, 1 - 90 BPM
Circuit Disconnection
  • OFF, 5 - 60 sec
Apnea Interval
  • 5 to 60 sec
No trigger
  • OFF; 0.5-15 min (ONLY in MPV)
Controls
AVAPS with passive circuit
  • PSV, S/T, and A/C-PC modes only
Tidal volume
  • 35 - 2000 ml on Dual Limb and Active Flow circuits, 50 - 2000 ml on passive and active PAP circuits
Breath rate
  • 0 - 80 BPM
PEEP
  • 0 - 35 cmH20 for active circuits 3 - 25 cmH20 for passive circuits
EPAP/CPAP
  • 3 to 25 cmH20
IPAP
  • 3 to 60 cmH20
Pressure support/pressure control
  • 0 to 60 cmH20
Inspiratory time
  • 0.3 - 5.0s
Rise time
  • 0 to 6
Triggering and cycling
  • Off, AutoTrak, Sensitive, AutoTrak, and Flow Trigger
Flow trigger sensitivity
  • 0.5 - 9 l/min
Flow cycle sensitivity
  • 10% - 90% of peak flow
Flow pattern
  • Square, Ramp
FiO2
  • 21% - 100%
Inspiratory time min/max
  • 0.3 to 3.0 sec
Backup ventilation
  • ON-OFF
  • *Nominal run time per method in International Electrotechnical Commission (7.5 hour/battery). Detachable battery charge time 0% to 80% is 2.5 hours, internal battery charge time 0% to 100% is 3.5 hours.


Long-lasting battery life

Ventilator-dependent patients are supported by internal and detachable batteries, now with 15-hour battery life. Compared to Trilogy 100's six-hour battery, Trilogy Evo gives patients a new level of freedom and mobility. It's ready to be mounted onto a roll-stand or a wheelchair, with a mountable, easy- to-use carry bag.


Meet your patients’ changing needs

Trilogy Evo provides noninvasive and invasive ventilator support with added sensitivity for a wide range of adult and pediatric patients. Volume and pressure modes, AVAPS-AE, SpO2 and EtCO2 monitoring and alarms of every parameter allow for adaptable care. Flexibility of circuits allows it to be used in a wide range of patients.


Reliability from a trusted source

The newest Trilogy device was made to be user-friendly without compromising the advanced features of the innovative Trilogy family technology. SpO2, EtCO2 and advanced respiratory mechanics monitoring capabilities are designed to help you optimize your patient’s therapy.
