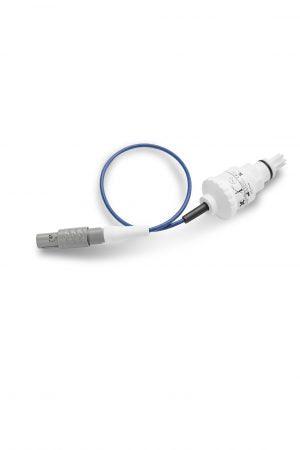

NEW Breas FiO2 Oxygen Sensor with Cable for Breas Vivo 55 Vivo 65 006347

NEW Breas FiO2 Oxygen Sensor with Cable for Breas Vivo 55 Vivo 65 006347

SKU: SKU: 006347 -N
Regular price $229.99 USD
Regular price Sale price $229.99 USD
Sale Sold out
Shipping calculated at checkout.

FREE Shipping on orders over $50.00

1 in stock

Included in this Sale:

  • NEW Breas FiO2 Oxygen Sensor with Cable for Breas Vivo 55 Vivo 65
    Ref PN 006347
  • 24 Month Warranty
  • FREE Ground Shipping to the Lower 48 US States

Product Specifications:

Measurement Range 0 to 100 Vol.%
Expected Operating Life – 1,000,000 Vol.% h
Sensor Lifetime < 6 years@ ambient air, depending on application
Initial Output Signal 13.0 to 16.5 mV@ dry ambient air
Response Time < 12 s
Drift < 1% Vol. O2/month@ air, averaged across 12 months
Operating Temperature 10 to 40 °C
Pressure Range 700 to 1250 hPa
Linearity Error W 3@ 100 % 02, applied for 5 min
Zero Offset Voltage 0,3 Vol% O2@ 100 % N2, applied for 5 min
Influence of Humidity – 0.03 % rel. O2 reading per% RH
Recommended Load Resistor: 10 kOhm
Temperature Compensation: NTC
Interferences: according to DIN EN ISO 80601-2-55
Weight 26g
Material in Contact with Media PA, PPS, PTFE, stainless steel
